Lite 800

SLA 3D Printer

·Industrial stereolithography 3D printing technology
·Practical build envelope capacity of 800 × 800 × 550 mm
·Industry-leading print quality, speed and precision
·3D print software for file preparation and production
·Compatible with a variety of 3D printing materials

Application

Electronics, Education, Architecture, Investment Casting, Prototype

Technical Parameter

Lite 800
Technology TypeStereolithography (SLA)
Build Envelope Capacity800 × 800 × 550 mm
AccuracyL < 100 mm: ±0.15 mm
L ≥ 100 mm: ±0.15% x L
Layer Thickness0.07 – 0.25 mm
Recoater FrameGranite
LaserSolid-state frequency tripled Nd: YVO₄
Beam Size0.12 – 0.8 mm
Wavelength355 nm
Scanning Speed8 ~ 15 m/s
Controlling SoftwareUnionTech™ RSCON
Data Preparation SoftwarePolydevs
Operation SystemWindows 10
Input Data File FormatSTL
Network Type and ProtocolEthernet, IEEE 802.3 using TCP/IP and NFS
Electrical Requirements200-240 VAC, 50/60 Hz, Single phase
Rated Power2.8 kVA
Systems ControlClosed-loop
Temperature Range72–79 °F (22–26 °C)
Maximum Change Rate1 °C/hour
Relative Humidity< 40% non-condensing
Machine Size (W x D x H)2351 × 1792 × 2215 mm
Machine Weight1120 kg
Initial Resin Weight560 kg
Resin TankManually replacing / Fixed
Processing and FinishingPost-Curing Unit (optional)
Warranty12 months

More materials, More possibilities

Car Parts
Size: 1089x144x204

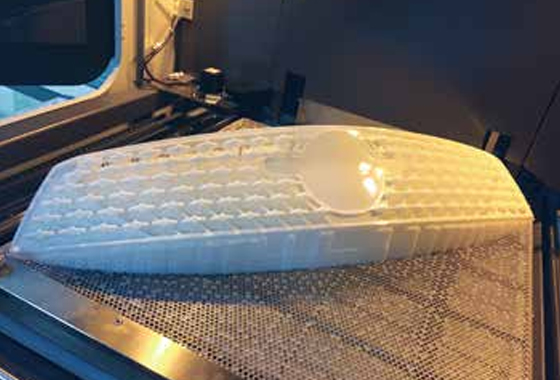

Car Door Panel
Size: 811x550x109
