Twin Dragon brings together some of the most powerful features of thermoplastic 3D Printing in a neat, easy to understand and user friendly package that ensures you meet the most demanding of applications and ensuring your success.

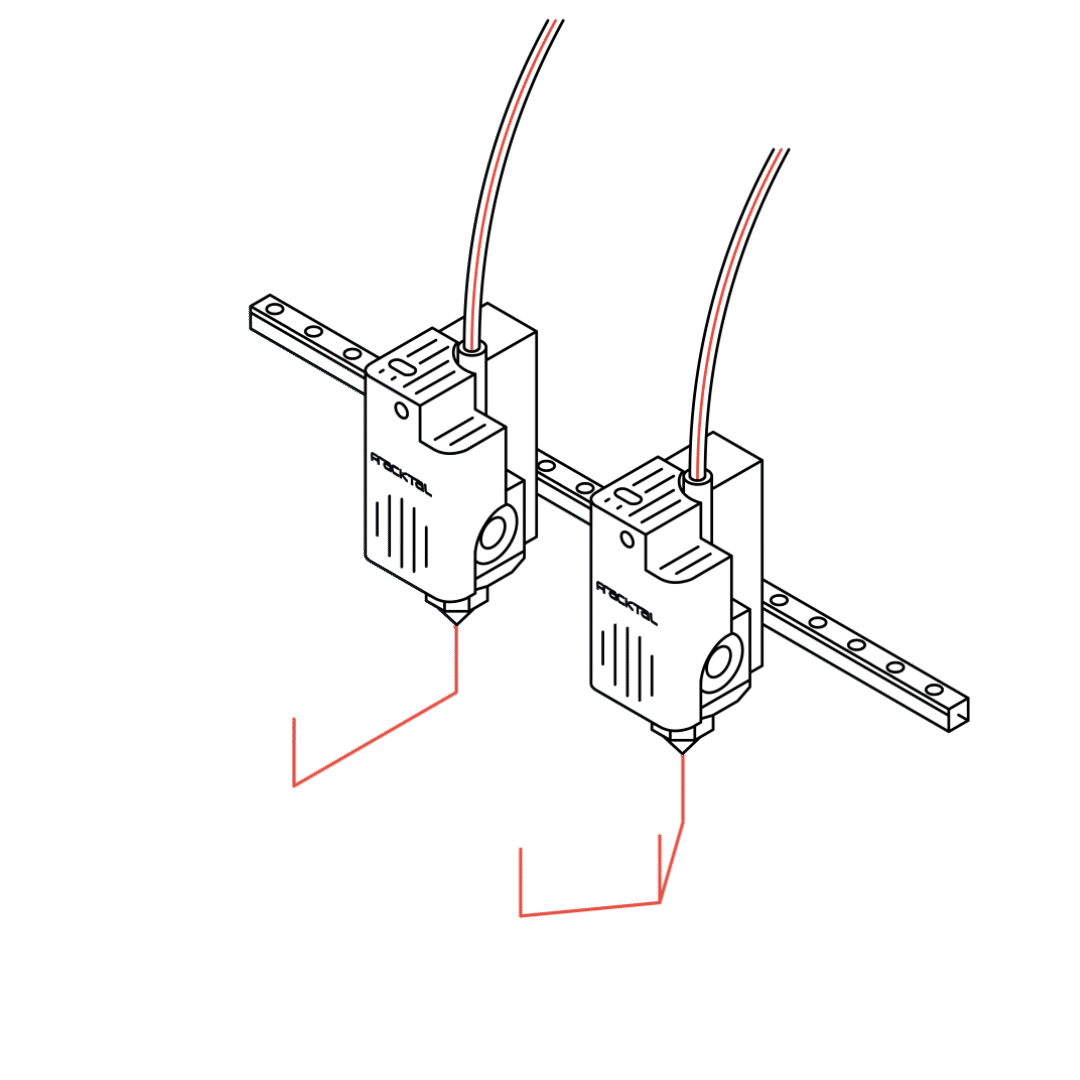

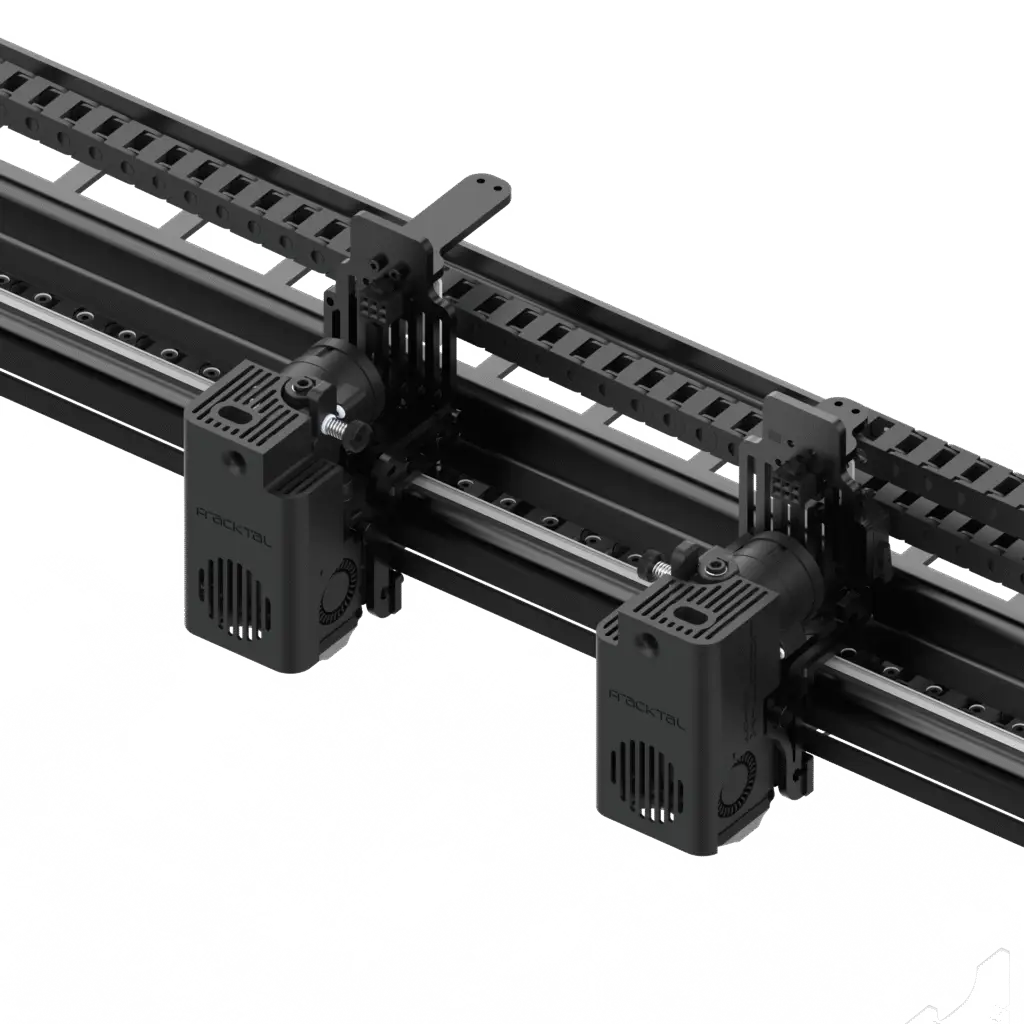

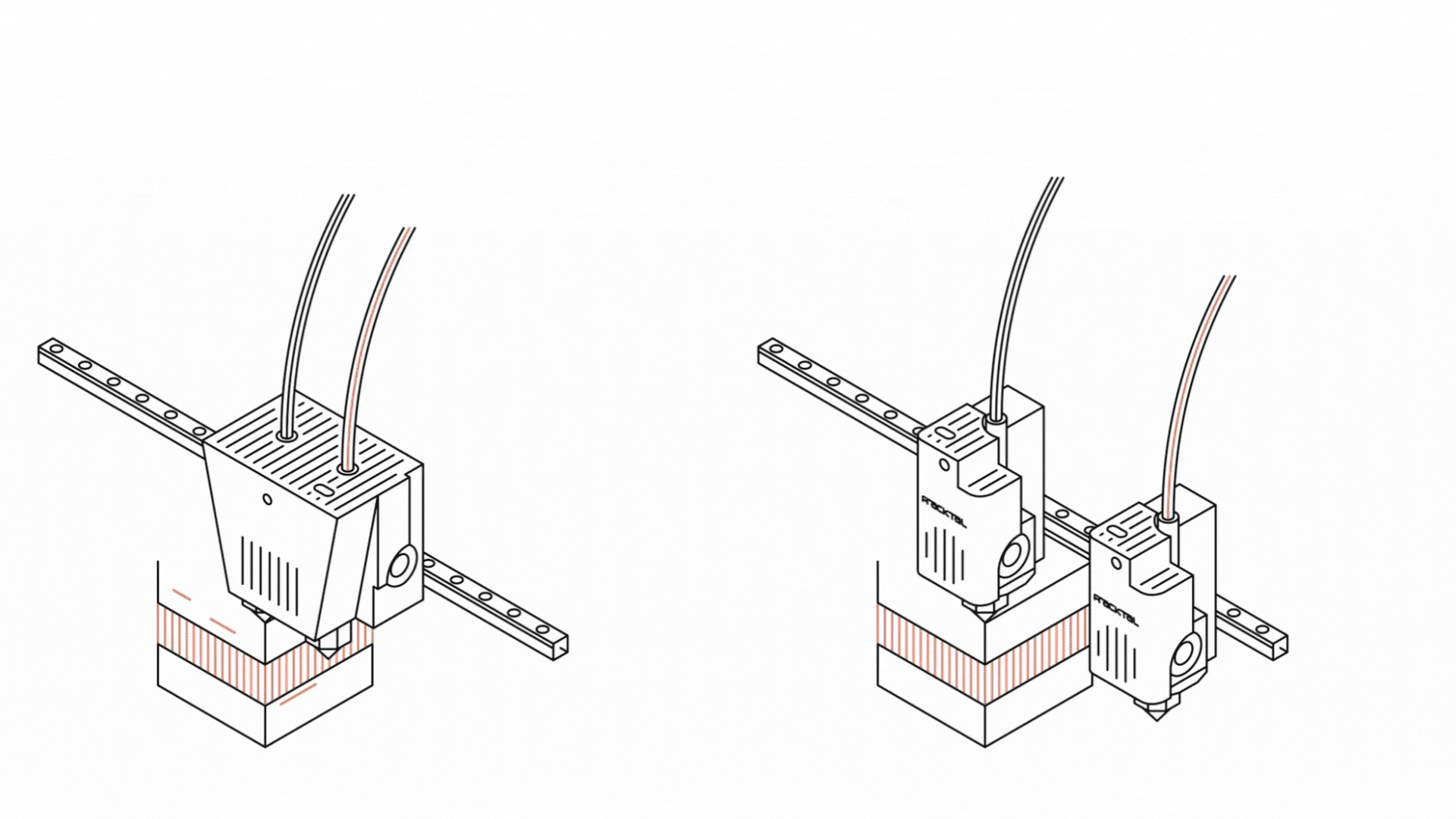

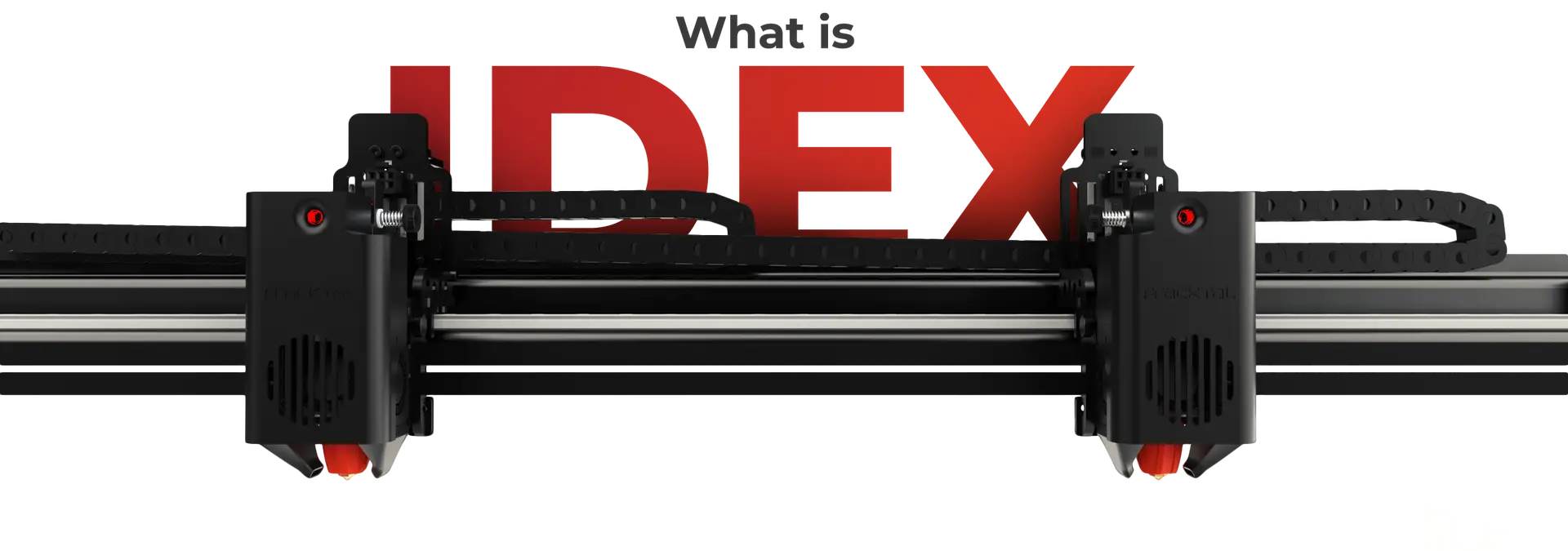

Twin Dragon is equipped with a unique double extrusion architecture: the independent double extrusion system (IDEX), the only extrusion system capable of printing with two heads independently.
Twin Dragon is equipped with a unique double extrusion architecture: the independent double extrusion system (IDEX), the only extrusion system capable of printing with two heads independently.

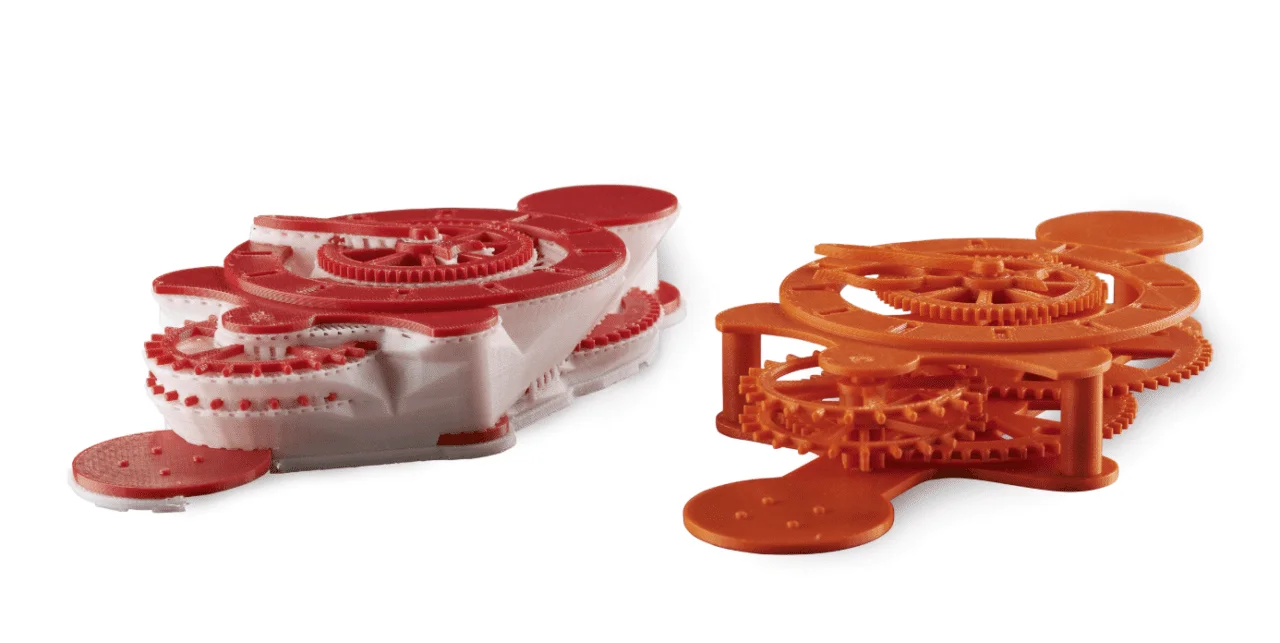

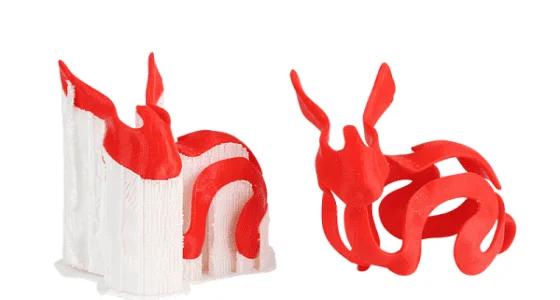

Twin Dragon’s Retracting Nozzle System with Water Soluble Supports enable you to go beyond what is possible with 3D printing, allowing you to print extremely complex geometries.
Machine Size | 650 mm x 700 mm x 1200 mm (L x B x H) |
Build Volume | 400 mm x 400 mm x 400 mm (L x B x H) |
Print Technology | FFF |
Filament Diameter | 1.75 mm |
Nozzle Diameter | 0.25 mm to 1.2 mm |
Weight | 150 KG |
Number of Nozzles | 2 |
Dual Nozzle System | IMEX Nozzle Retracting System |
Nozzle Materials | Brass, Stainless Steel, Hardened Steel |
Layer Resolution | 0.4 mm nozzle: 100 – 300 micron 0.6 mm nozzle: 150 – 450 micron 0.8 mm nozzle: 200 – 600 micron 1.2 mm nozzle: 300 – 800 micron |
XYZ Resolution | 8 Micron, 8 Micron, 2 Micron |
Display | 7″ inch Capacitve Touch Panel |
Nozzle Replacement | Quick Swap-able Nozzles |
Feeder Type | Direct Drive |
Calibration | Active Automatic Leveling & Calibration |
Build Speed | Upto 300 mm³/s |
Nozzle Temperatures | Upto 300°C |
Build Plate | PEI Flexbuild Surface for all other materials |
Build Plate Temperature | Upto 150 °C |
Chamber Temperature | Upto 90 °C |
Operating Temperature | 15°C to 35°C Recommended |
Compatible Materials | ABS, PLA, Tough PLA, PLA+, PETg, PVA, PVA+, Polycarbonate, Carbon Fiber Nylon, Composites and CF Nylon |
Supplied Slicing Software | Fracktory Desktop Slicer |
Supported File Types | STL, OBJ, X3D, 3MF, PNG, JPG |
File Transfer | USB, WIFI, LAN |
Connectivity | USB, WIFI, LAN |
Server | Built in Linux based Server running Octoprint |
Training | Online or Onsite training & Installation options available |
Warranty Period | 12 Months |
Expert Support | E-mail, phone, and live-operating via Anydesk |
Integrating Twin Dragon into your production workflow for jigs & fixtures, spare part production and even end-use parts can have monumental impact in cost and time saving. Find out how we can work with you to make this a reality.
