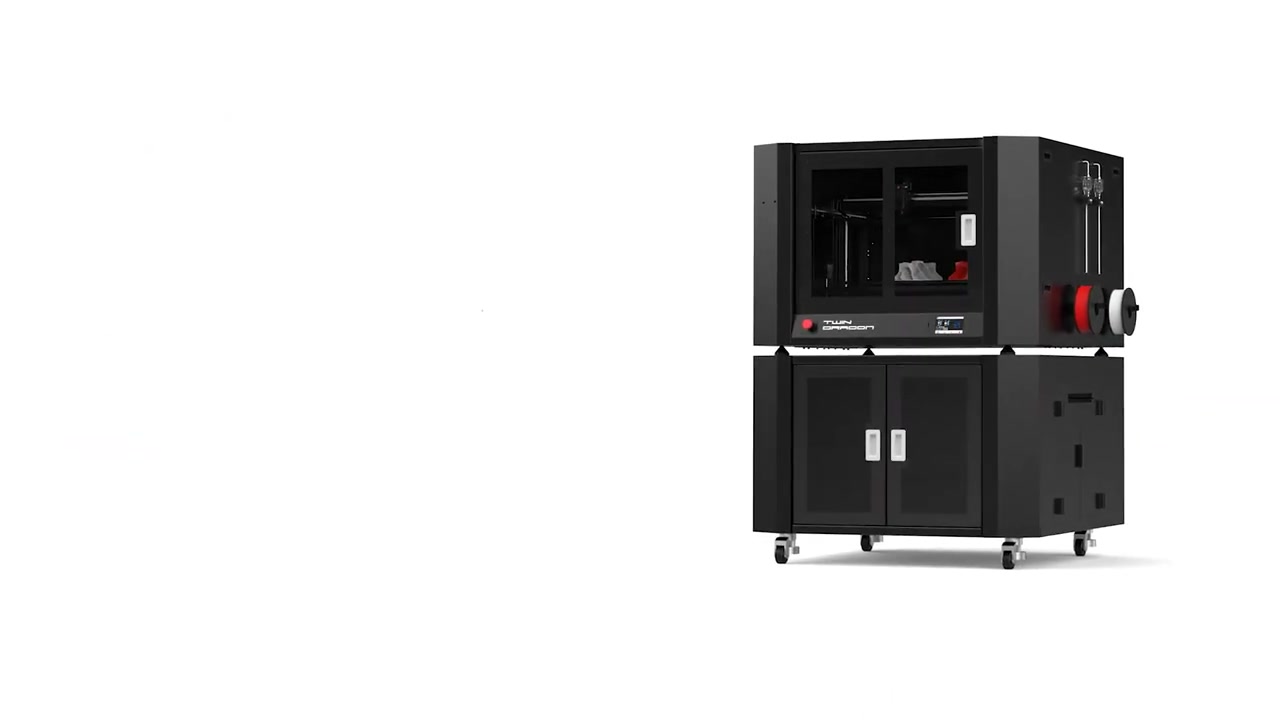

IDEX-Equipped Industrial 3D Printer

Twin Dragon

India’s leading IDEX 3D printer for industrial-scale performance. Two truly independent extruders give you dual-material and two-colour parts, soluble supports, and with mirror and duplication modes, double the output from a single build.

Get a Quote See Specifications

Independent dual extrudersUp to 500 mm/sDual-material / two-colourUp to 600×600×400 mm

600×600×400Max build volume (mm)

500 mm/sMax print speed

300°CNozzle temperature

90°CHeated chamber

A decade in the field

Trusted, recognised and featured

The technology

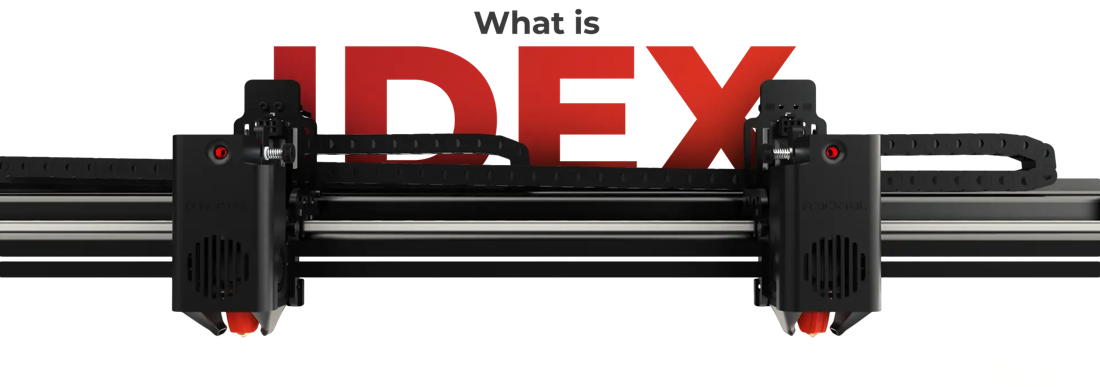

Powered by IDEX Technology

Twin Dragon is engineered for maximum throughput and precision. Independent Dual Extrusion (IDEX) unlocks print modes a fixed dual head cannot reach, and the machine handles high-performance composite materials with ease.

Ideal for manufacturers, prototyping teams and R&D labs: one machine that scales from the bench to the factory floor across three build sizes.

Request a Quote

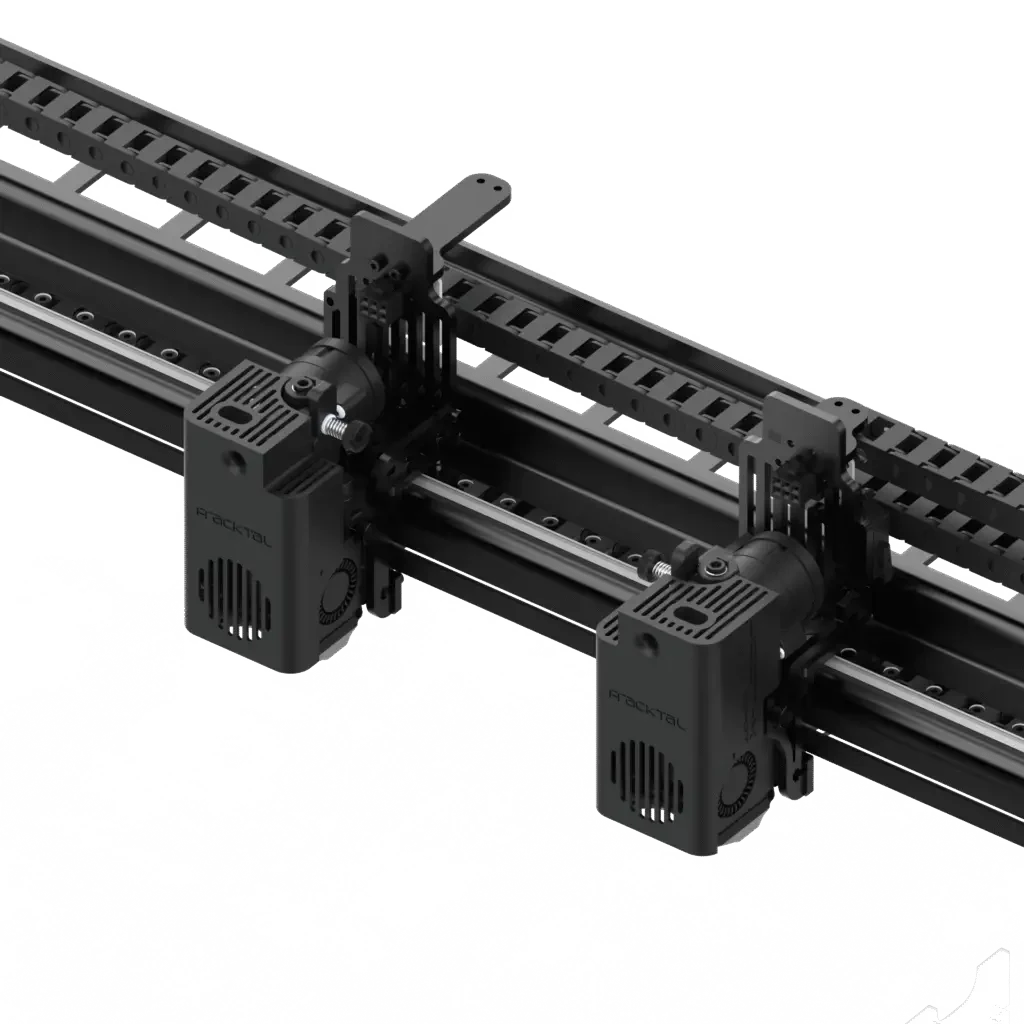

Independent Dual Extrusion: two print heads on a single gantry. Unlike conventional dual extruders with both nozzles fixed together, each Twin Dragon head moves on its own: one prints while the other parks clear of the part.

Three build sizes

Twin Dragon Variants

Specification	TD 300	TD 400	TD 600
Build volume (L×B×H)	300 × 300 × 400 mm	400 × 400 × 400 mm	600 × 600 × 400 mm
Max print speed	500 mm/s	400 mm/s	300 mm/s
Power rating	1000 W	1250 W	1750 W
Best suited for	R&D & education	Workshops & short runs	Production & large parts

Why IDEX

A Conventional Dual Extruder vs. IDEX

In a conventional shared-carriage dual extruder both nozzles travel together, so the idle nozzle drips and drags molten plastic across the part.

IDEX lifts the idle nozzle and parks it clear, so nothing oozes onto the part and no threads get dragged across it.

Same investment, double productivity

Double Your Output

IDEX is the only extrusion system that prints with two heads independently, which is what lets a Twin Dragon run Mirror and Duplication modes and make two parts at once. Twice the capacity from one machine.

Mirror Mode

Both extruders print the same part mirrored, so a left and a right come off the bed together.

Duplication Mode

Both extruders print identical copies in parallel. Twice the output from one job, with no change to the file.

One machine, five ways to print

IDEX Print Modes

Dual-Colour Printing

Dual-tone parts: logos, labels and two-tone models, with no manual filament change.

Dual-Material Printing

Two materials in one print, flexible with rigid or a model with its support, each laid down by its own nozzle.

Soluble Supports

Print supports in PVA or a soluble material and dissolve them away, achieving complex geometries with clean, easy post-processing.

Duplication Mode

Both extruders print identical copies at the same time, which doubles the output on a production run of one part.

Mirror Mode

Print a part and its mirror at the same time. Left and right components come off the bed together.

Built for uptime

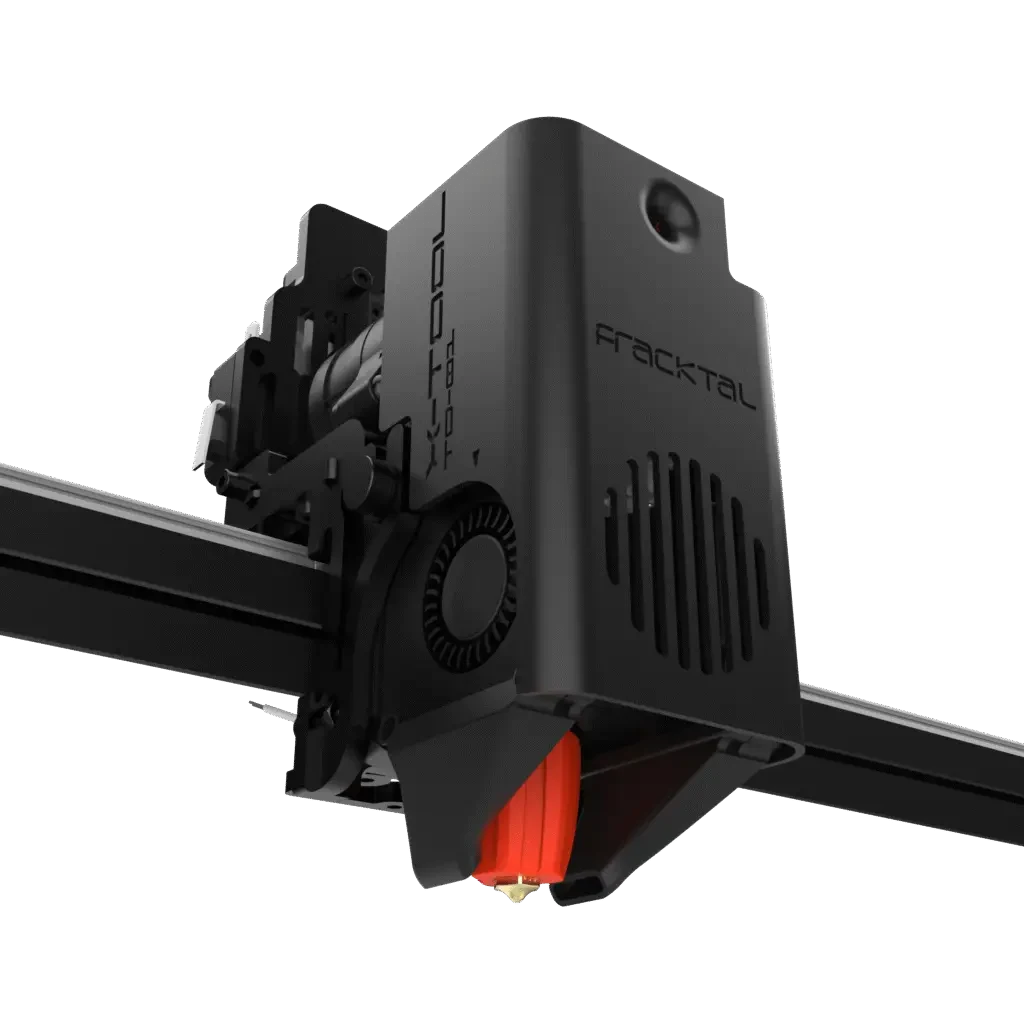

Hot-Swappable Nozzle System

The IMEX retracting system is what makes Twin Dragon’s two heads truly independent, keeping the idle nozzle lifted clear of the part while the other one works.

Nozzles from 0.25 mm to 1.2 mm swap in seconds, in brass, stainless and hardened steel. Dial in fine detail or lay down bulk, from PLA through to abrasive carbon-fibre composites.

Beyond the possible

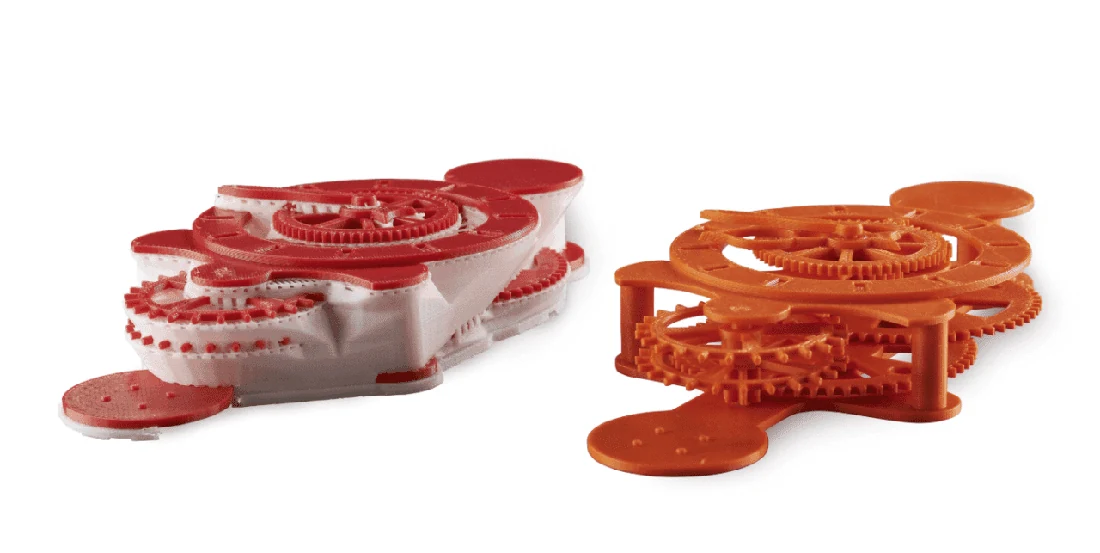

Complete Freedom of Complexity

Twin Dragon’s retracting nozzle system paired with water-soluble supports reaches geometry single-nozzle printing cannot: complex internal channels and captive assemblies.

Print supports in PVA and simply wash them away, leaving clean surfaces and shapes a single nozzle could never release.

Technical specifications

Twin Dragon 600 at a Glance

Specification	Twin Dragon 600
Machine size (L×B×H)	650 × 700 × 1200 mm
Build volume (L×B×H)	600 × 600 × 400 mm
Print technology	FFF · IDEX (Independent Dual Extrusion)
Filament diameter	1.75 mm
Number of nozzles	2 — with IMEX nozzle-retracting system
Nozzle diameter	0.25 mm to 1.2 mm (quick-swap)
Nozzle materials	Brass, stainless steel, hardened steel
Nozzle temperature	Up to 300°C
Layer resolution	100–800 micron (nozzle-dependent)
XYZ resolution	8 · 8 · 2 micron
Build speed	Up to 500 mm³/s
Build plate	PEI Flexbuild surface, up to 150°C
Chamber temperature	Up to 90°C
Operating temperature	15°C to 35°C
Feeder	Direct drive
Calibration	Active automatic levelling & calibration
Display	7″ capacitive touch panel
Materials	PLA / Tough PLA / PLA+, ABS, PETg, PC, PVA / PVA+, CF-Nylon and composites
Slicer	Fracktory Desktop Slicer
Supported files	STL, OBJ, X3D, 3MF, PNG, JPG
Connectivity	USB · Wi-Fi · LAN
Server	Built-in Linux server running OctoPrint
Machine weight	150 kg
Support & training	Email, phone and live support via AnyDesk; online or onsite training & installation
Warranty	12 months

Built for the Factory of the Future

Jigs and fixtures, spare-part production, end-use parts: what a Twin Dragon changes is cost and lead time. Tell us about your parts and we’ll show you how it fits your factory.
