Polycarbonate
(PC)
Highest impact resistance and heat deflection in the Fracktal range — the engineering choice when nothing else survives.
Quick Reference
- Material properties
- High-Performance Engineering
- Polycarbonate (PC)
- None
- 62 MPa
- 134 °C
- 1.20 g/cm³
- Moderate — dry 70 °C / 8 h before printing
- 280–300 °C
- ≥ 0.4 mm
- Hardened steel
- 100–120 °C
- Required + heated chamber (65–75 °C)
- Sand, drill, tap, polish to optical clarity
Material Property Profile
Values scored 0–10 from measured mechanical data and print process behaviour. Select a material above to compare properties.
Key Properties
Engineering values with context that decides whether Polycarbonate (PC) is the right choice for your application.
Machine Requirements
Hard thresholds for reliable Polycarbonate (PC) output — check your printer meets these before loading the filament.
| Requirement | Minimum Spec | Recommended |
|---|---|---|
| Nozzle Temperature | 270 °C | 280–300 °C |
| Bed Temperature | 100 °C | 110–120 °C |
| Enclosure | Enclosed (required) | Heated chamber 65–75 °C |
| Chamber Temperature | 55 °C | 65–75 °C |
| Nozzle Material | Hardened steel | Hardened steel |
| Cooling Fan | Off | Off (delamination risk) |
Heated chamber critical. PC delaminates between layers without a chamber temperature of 65–75 °C. Open-frame or passively enclosed printers will produce structurally weak prints. A 280–300 °C all-metal hot-end is also mandatory.
Applications — By Industry
Safety & Protection
- Protective shields & barriers
- Safety goggles & lenses
- Machine guards
Automotive
- Under-bonnet structural components
- High-temp sensor housings
- Interior structural brackets
Electronics
- High-impact device enclosures
- LED light pipes
- Electrical insulation parts
R&D / Prototyping
- High-temperature functional prototypes
- Load-bearing test specimens
- Optical light-guide prototypes
Tensile Strength — FDM Materials (MPa)
Heat Deflection vs Tensile Strength
Available Materials
When to Use Polycarbonate (PC) — and When Not To
Use Polycarbonate (PC) when
- Continuous operating temperature above 100 °C
- Maximum impact resistance is the primary requirement
- Optical transparency in natural colour is needed
- Sustained load-bearing (creep resistance matters)
- Safety-critical applications with failure consequences
Avoid Polycarbonate (PC) when
- You only have an open-frame printer (delamination certain)
- Budget material for non-critical parts (use PETG or ABS)
- Chemically aggressive solvents — PC dissolves in ketones, esters
- UV-exposed outdoor applications (use ASA or UV-stabilised grades)
DfAM Tips for Polycarbonate (PC)
Design rules that get the best performance from Polycarbonate (PC).
Wall Thickness ≥ 1.0 mm
PC needs 3 perimeters minimum for reliable layer-to-layer bonding. Thin walls tend to delaminate without a heated chamber.
Min Hole Diameter: 1.5 mm
PC shrinks on cooling. Add 0.1–0.15 mm to bore diameters for press-fit or clearance holes.
Heated Chamber is Non-Negotiable
PC without a 65–75 °C chamber will delaminate. If your printer cannot maintain chamber temperature, switch to PC-ABS instead.
Max Overhang: 40°
Without cooling fan, PC overhangs degrade quickly. Keep unsupported spans under 25 mm and stay inside 40°.
Printers Compatible with Polycarbonate (PC)
Polycarbonate demands 280–300 °C nozzle temperature and a heated chamber at 65–75 °C. Dragon, Twin Dragon, Julia, and Volterra all meet these extreme requirements.
Ready to print in Polycarbonate?

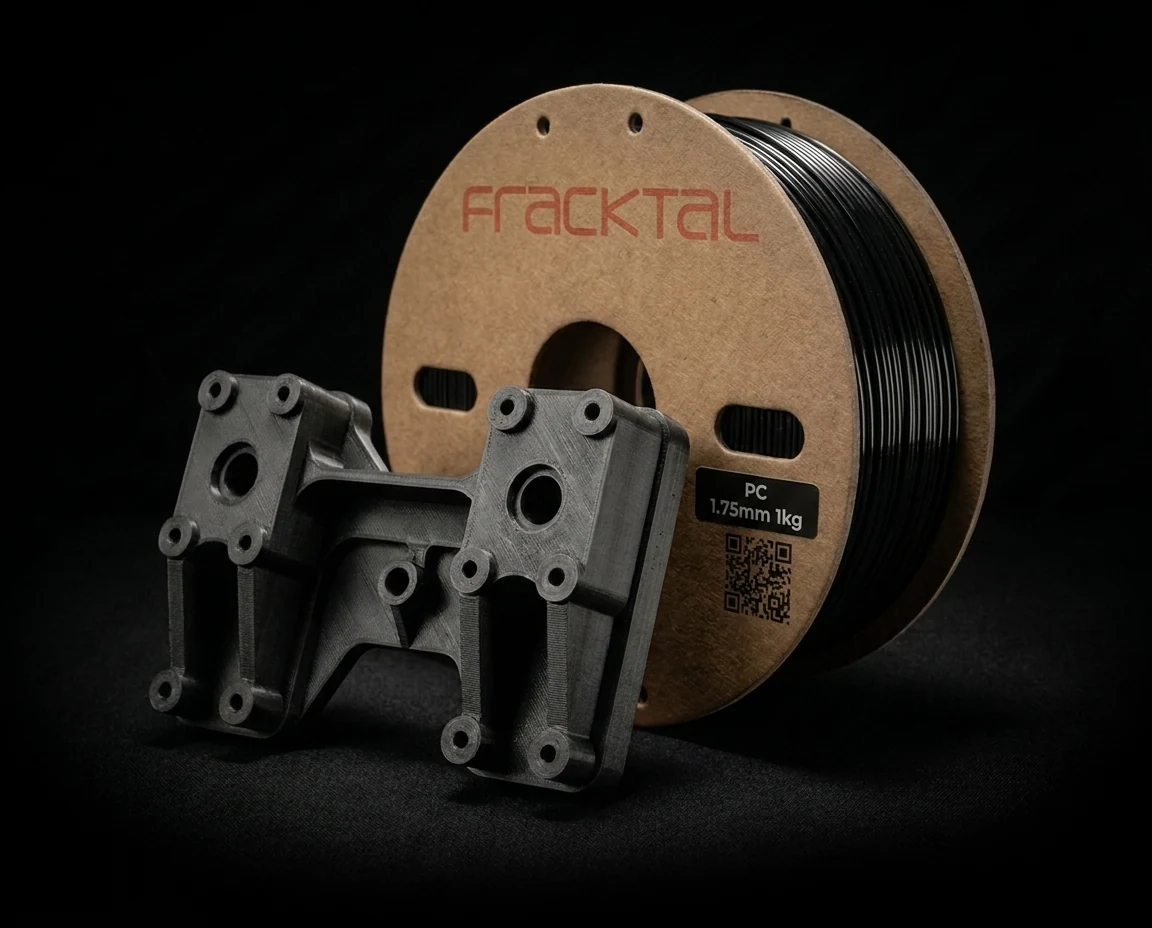

Order Fracktal Polycarbonate PC filament — available in 500 g and 1 kg spools.
