To identify the controller Board version and its motor drivers

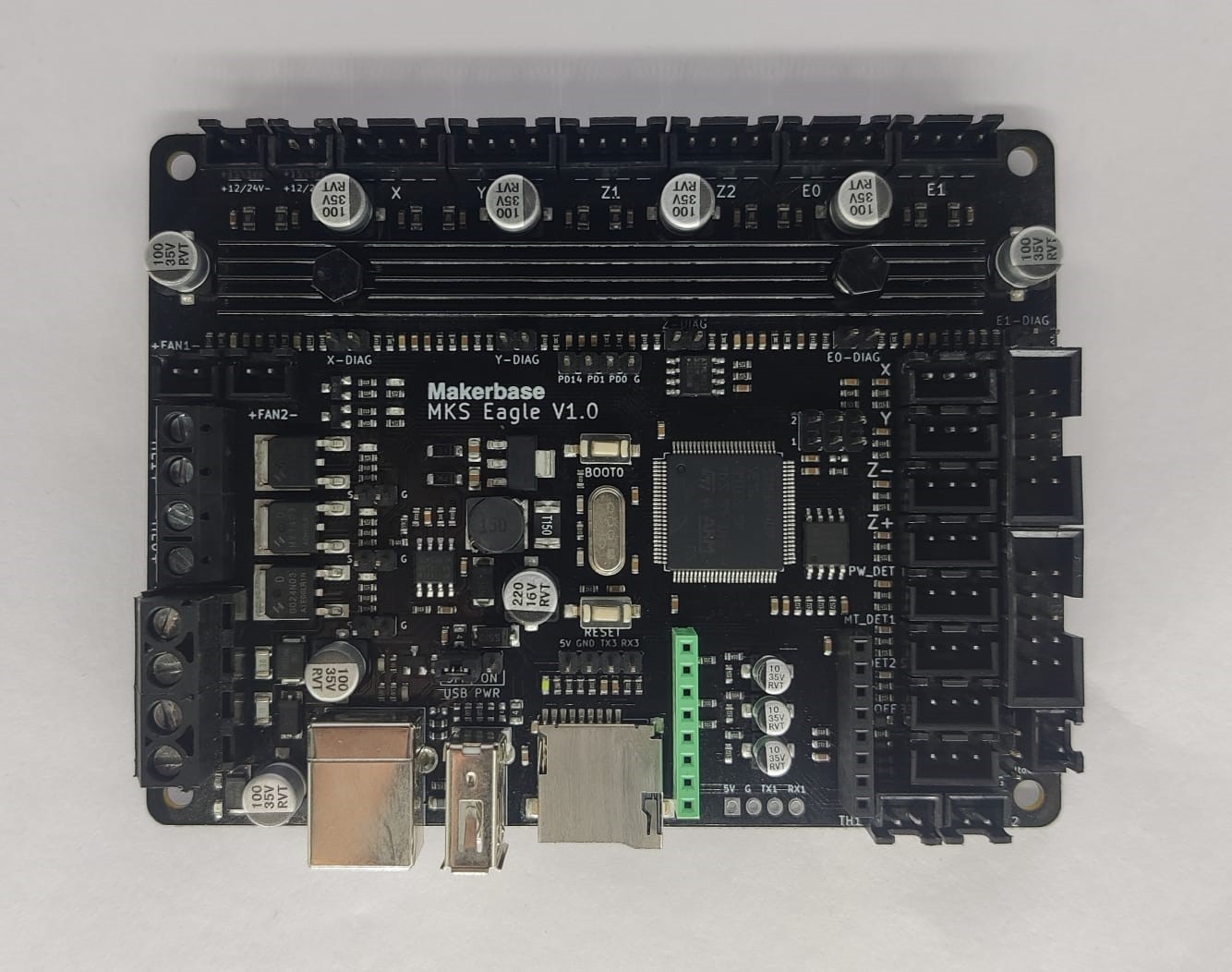

- MKS Eagle V 1.0

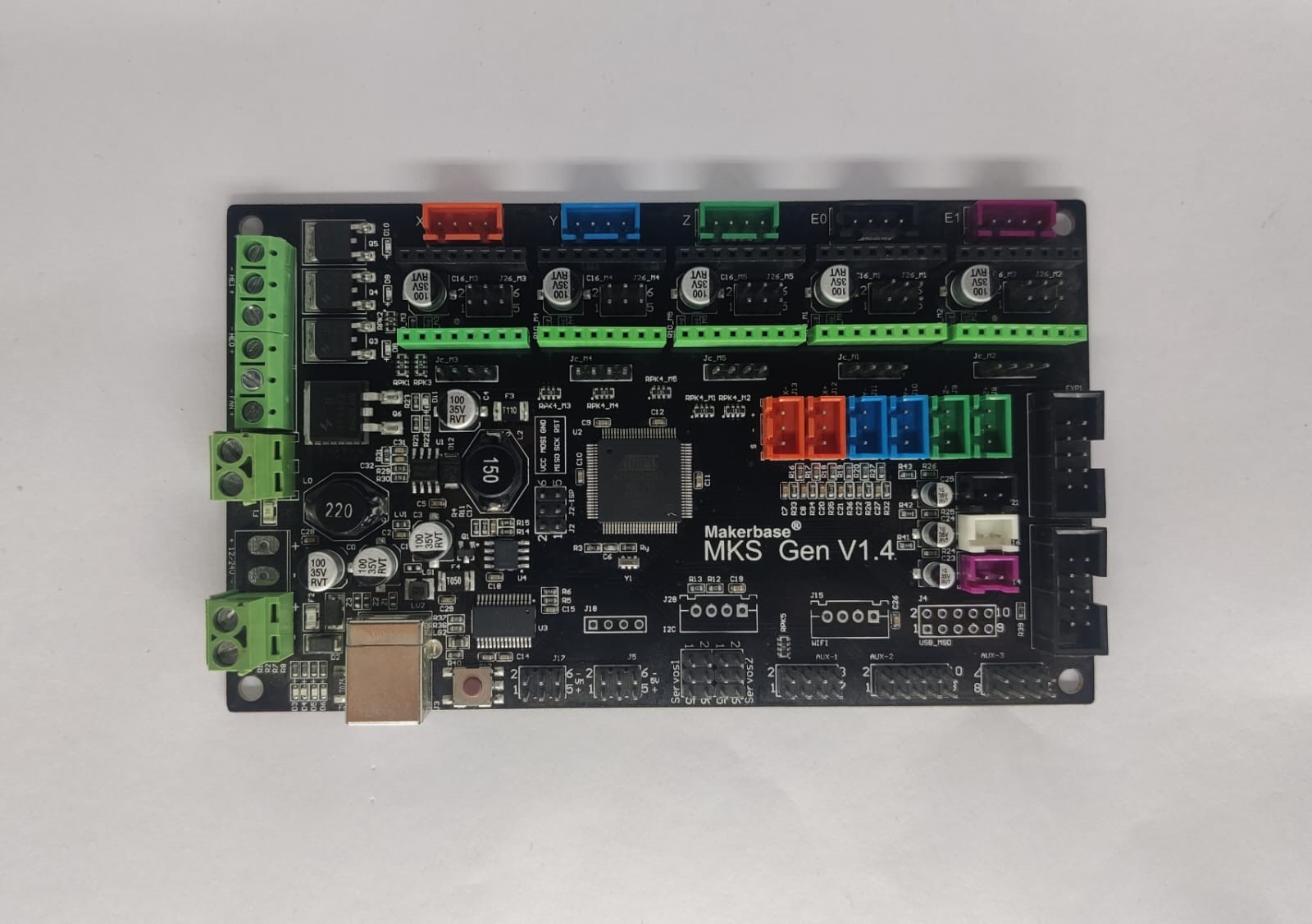

- MKS Gen 1.4 board

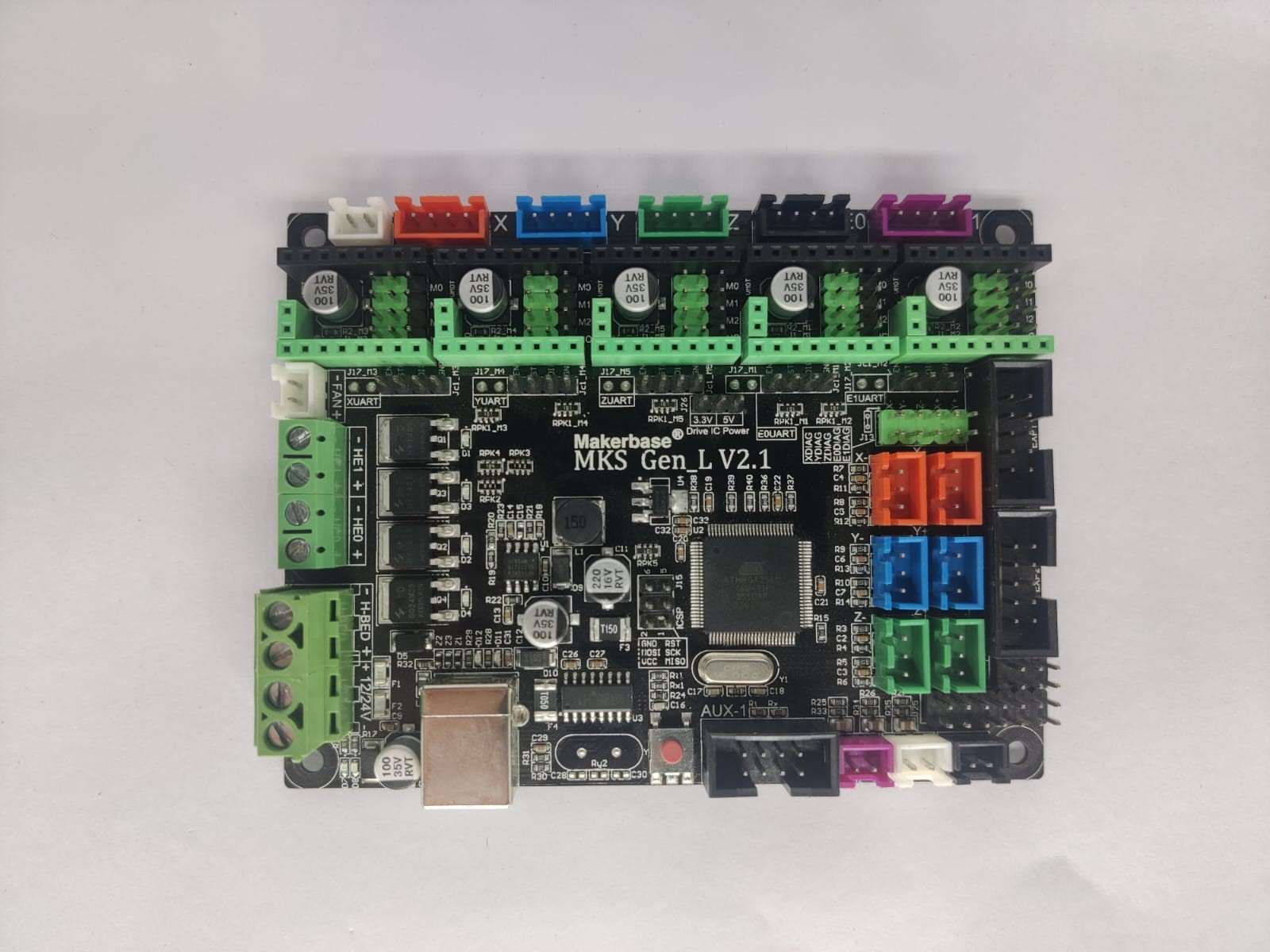

- MKS genL v2.1 board

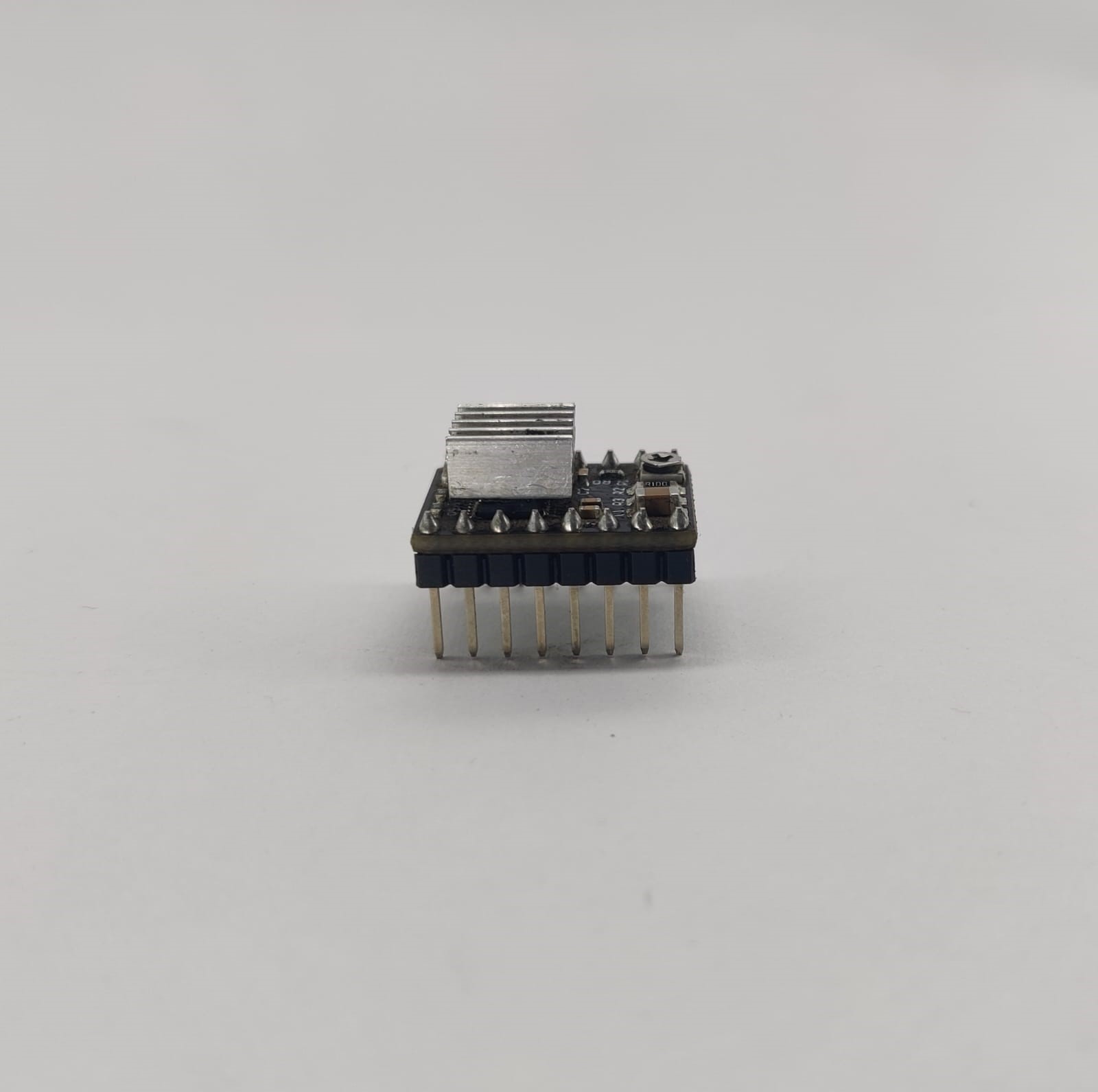

- DRV8825 Motor Driver

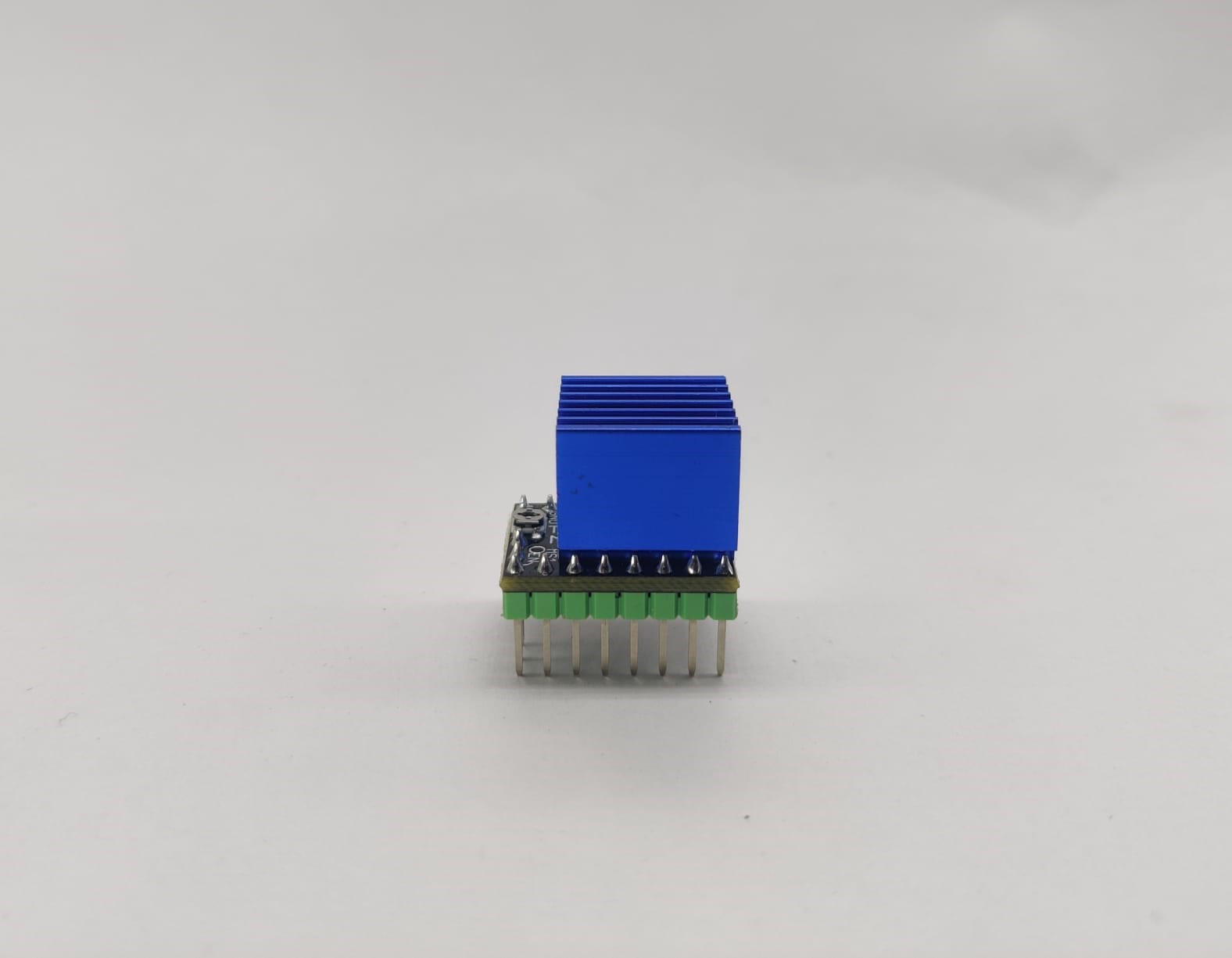

- TMC2209 Motor Driver

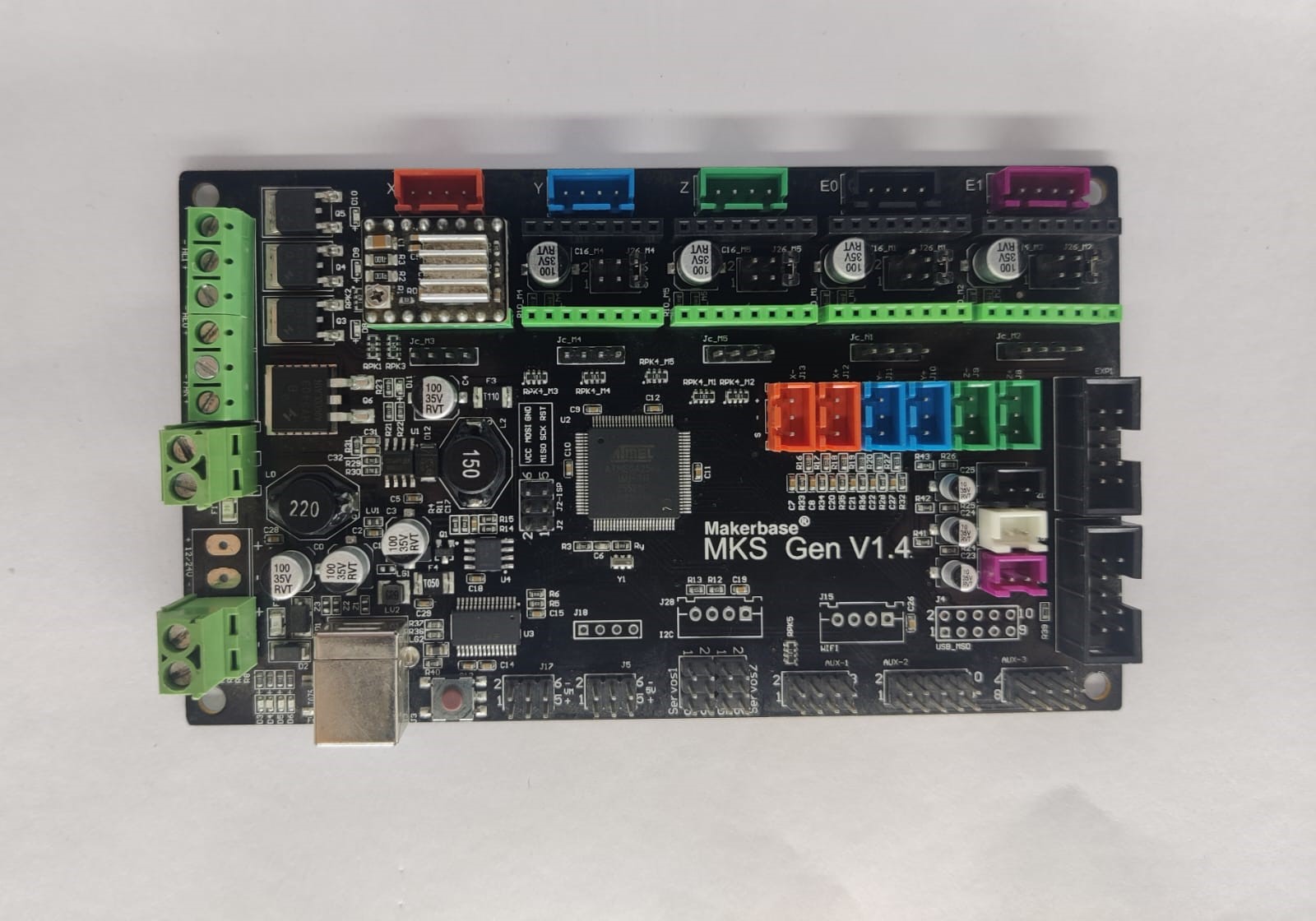

MKS GEN 1.4 for DRV8825 with 1/16 Micro stepping per step
Jumper layout below
| 0 | 0 | 1 | 16 microsteps / step |

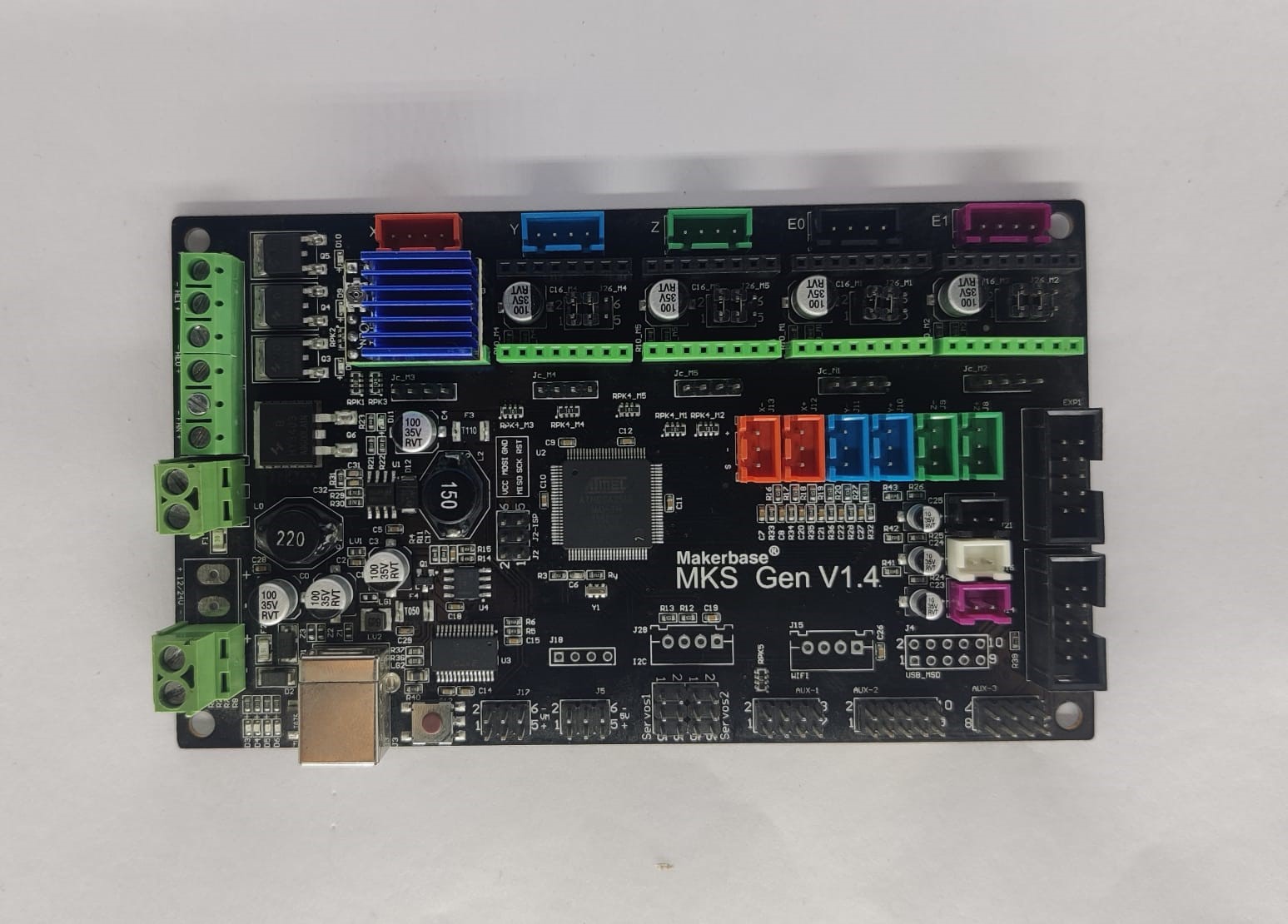

MKS GEN 1.4 for TMC2208/TMC2209 with 1/16 Micro stepping per step
Jumper layout below
| 1 | 1 | 0 | 16 microsteps / step |

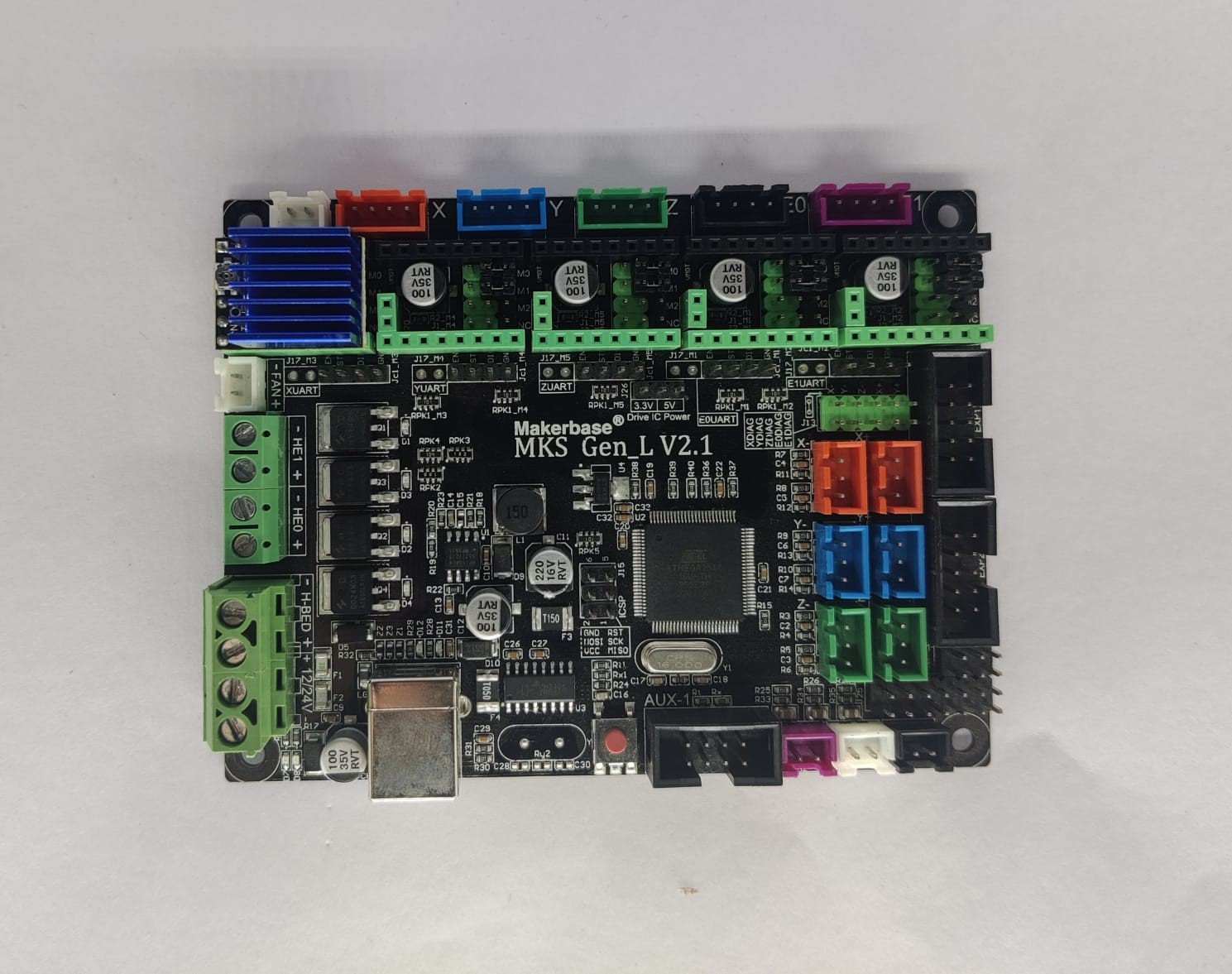

MKS genL v2.1 for TMC2209 with 1/16 microstepping per step
Jumper layout below
| 0 | 1 | 1 |
| 0 | 1 | 1 |
| 0 | 0 | 0 |
| 0 | 0 | 0 |

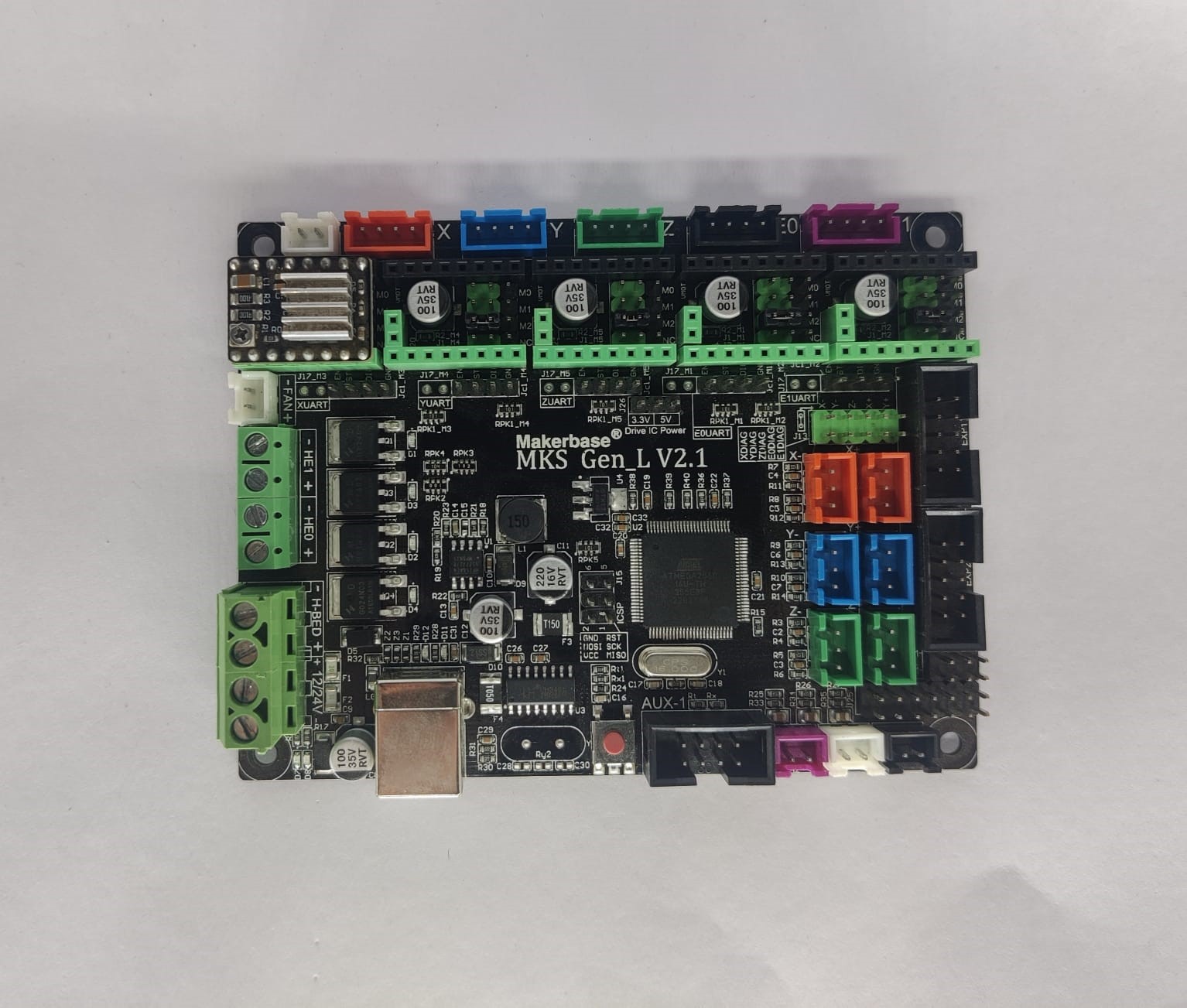

MKS genL v2.1 for TMC2209 on UART mode
Jumper layout below
| 0 | 0 | 0 |
| 0 | 0 | 0 |
| 1 | 1 | 0 |
| 0 | 0 | 0 |
